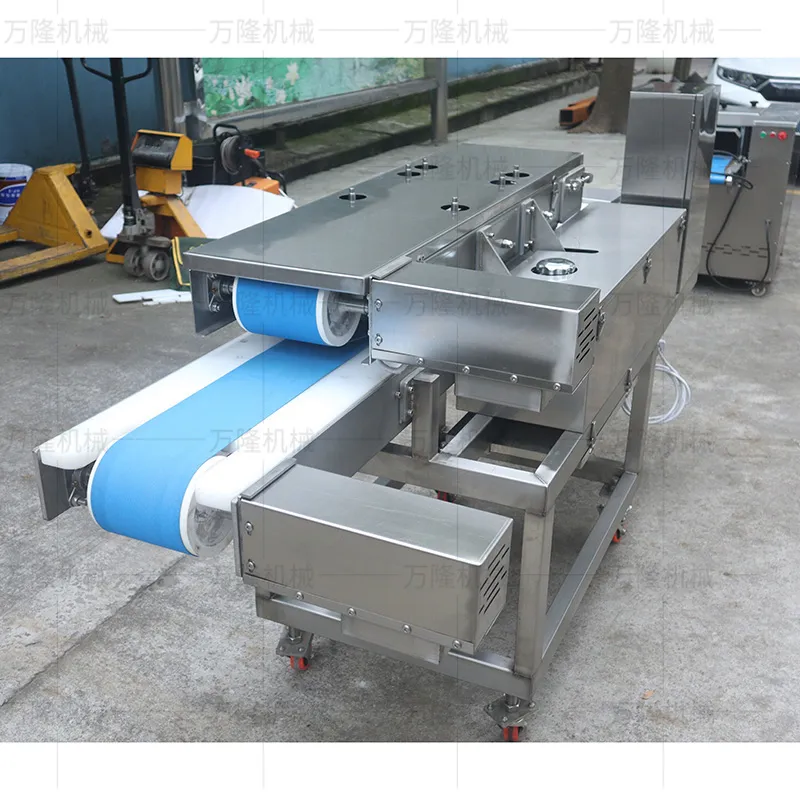

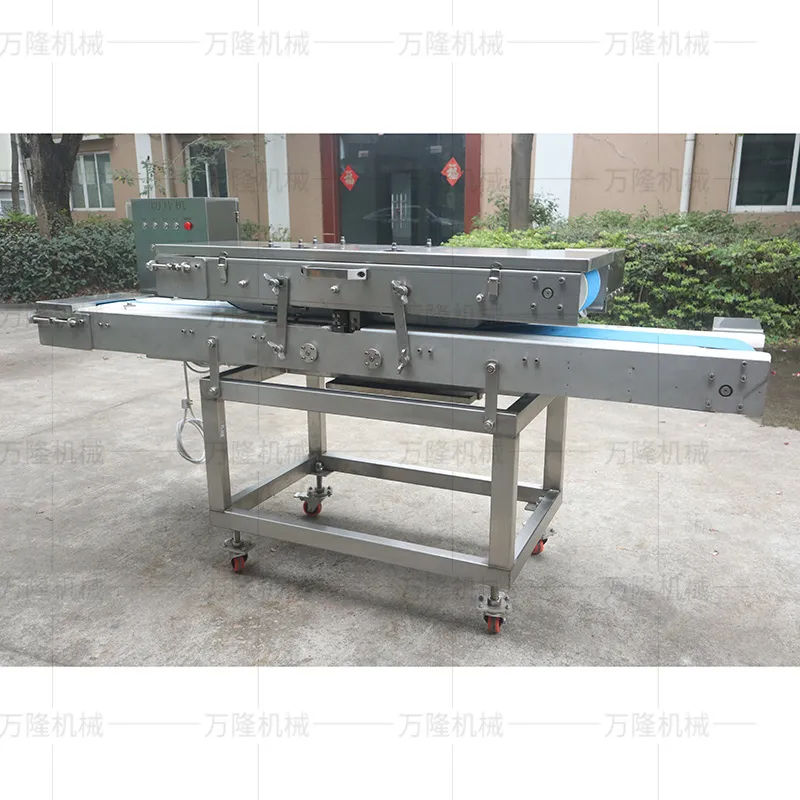

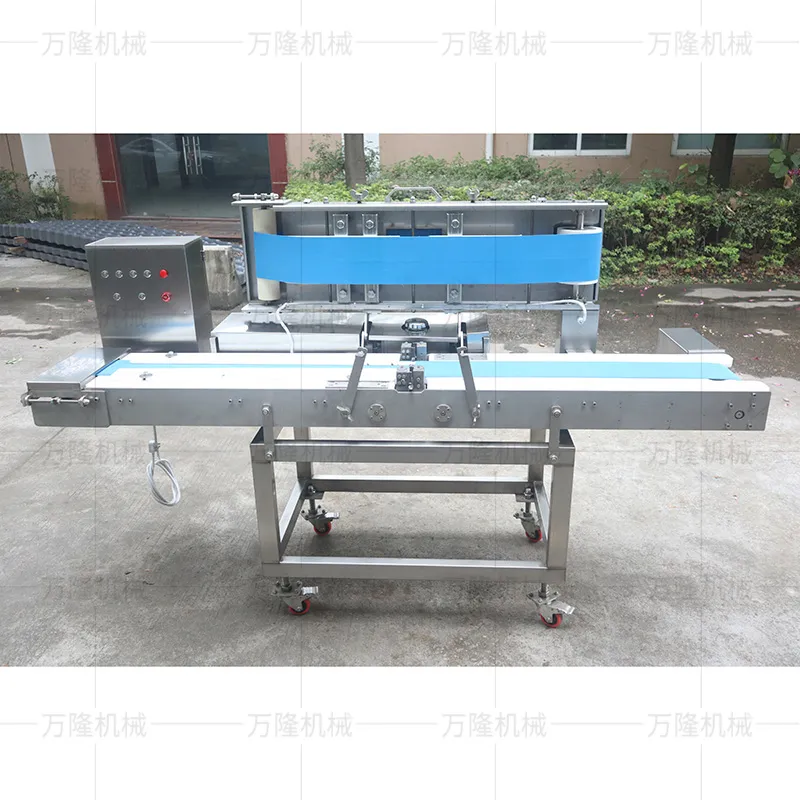

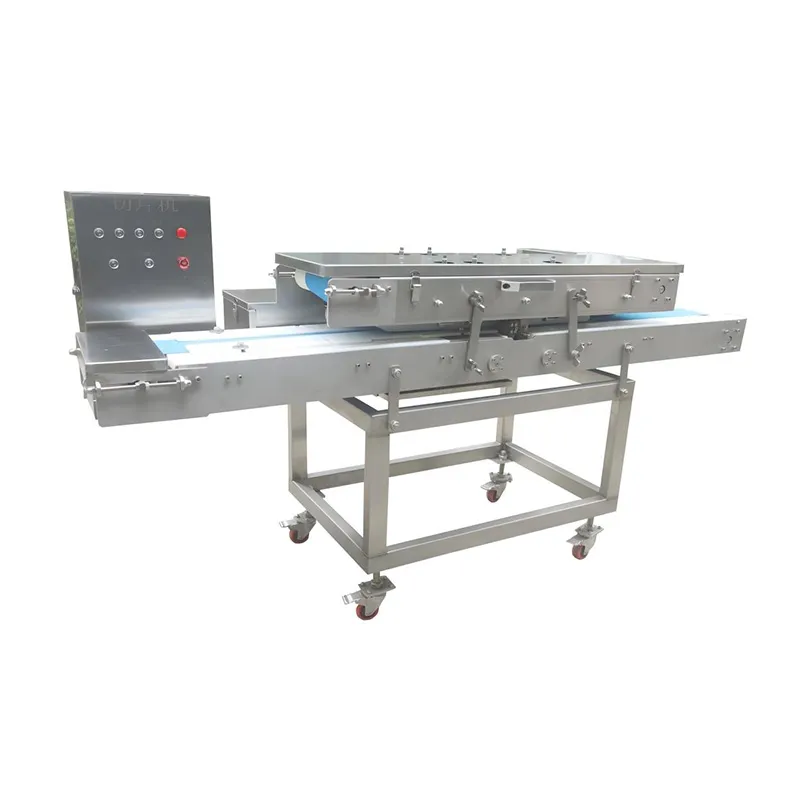

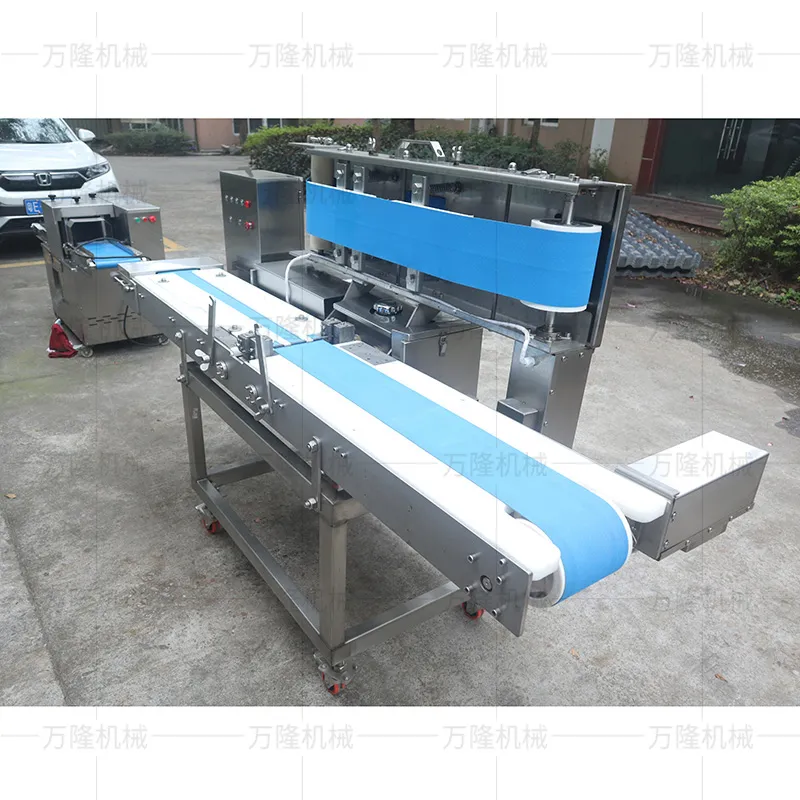

Parallel slicing machine for meat
(1)Use upper and lower layers to convey the material for feeding and discharging.
(2)Equipped with cam transmission and self-oil supply to improve mechanical durability.
(3)Use German 9CR18 special stainless steel blades, which are sharp and durable, with good cutting quality.
(4)Adjust the conveying speed and cutting speed to meet different cutting requirements.
Features :
- The upper and lower layers are used for feeding and discharging.
- The bolts can be adjusted according to the processed products to achieve adaptive clamping.
- Equipped with cam transmission and self-oil supply to improve mechanical durability.
- Siemens inverter and German 9CR18 special stainless steel blade are used, which are sharp, durable and have good cutting quality.
- Except for the transmission motor, electrical device or other materials that cannot use metal, the metal parts are all SUS304.
- The conveying speed and cutting speed can be adjusted, and the belt and blade can be adjusted steplessly to meet different cutting requirements.
- The cutter transmission device adopts imported friction plate and variable speed eccentric box structure, which is sturdy and durable.
Product Parameters :
| Model | MD-350 | MD-350 |
|---|---|---|
| Power | 3.2KW | 4 KW |
| Production capacity | 500-600kg/h | 700-900kg/h |
| Cutting groove size | 84*84*350mm | 120×120×550MM |
| Minimum size of diced meat | 4mm | 4mm |
| Maximum size of diced meat | 30mm | 60mm |
| Dimensions | 1480*800*1000mm | 1950×1000×1120mm |
| Weight | 500kg | 700kg |
Application :
The parallel meat slicer is mainly suitable for horizontal slicing of fresh chicken, pork, beef, etc.
Certificate :CE certified products, in line with ISO9001 quality standards, and have obtained a number of independent innovation technology patents.
