Boost Your Production Efficiency
Clean and Blanch Up to 5 Tons of Fruits, Vegetables, and Meats per Hour with Our Advanced Processing Line!
Product advantages
Increased Production
Continuous systems are ideal for production operations that need to process several tons of vegetables per hour. Suitable for food manufacturers, canneries, and large-scale kitchen facilities.
Consistent Quality
Minimizes over- or under-processing and maintains the color, texture, and nutritional value of vegetables and meats.
Improved Food Safety
Effectively removes dirt, pesticide residues, and harmful microorganisms from fruits and vegetables, making them safe for consumption and further processing.
Labor and Energy Savings
Automated machinery reduces the need for manual intervention, lowering labor costs and minimizing energy waste.
Food washing, blanching, and drying production line
Product Description
- 1. Food-grade stainless steel material: Durable, corrosion-resistant, and meets food industry standards.
- 2. Water-saving circulation system: Reduces water consumption while maintaining cleaning performance.
- 3. Optional ozone sterilization function: Effectively kills bacteria and extends the shelf life of agricultural products.
- 4. Uniform blanching: Ensures even heating of ingredients, maximizing the preservation of color and nutrients.
- 5. Multiple capacity options: Suitable for small to large-scale commercial food processing enterprises.
Commercial processing production lines are designed for continuous, large-scale food processing.
- Fruits: Apples, peaches, pears, grapes, and citrus fruits.
- Vegetables: Leafy greens (spinach, lettuce), root vegetables (potatoes, carrots), mushrooms, and corn.

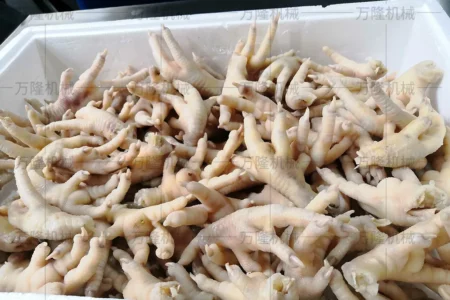

- Meats: Poultry, beef, pork, and fish.
- Seafood: Shrimp, crab, and other aquatic products.
- Other Products: Ready-to-eat foods, pickled vegetables, and processed snacks.
How it work

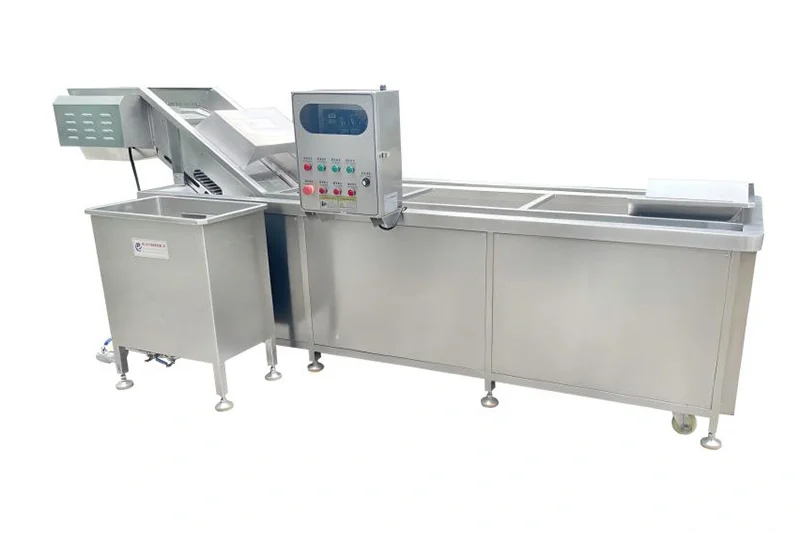

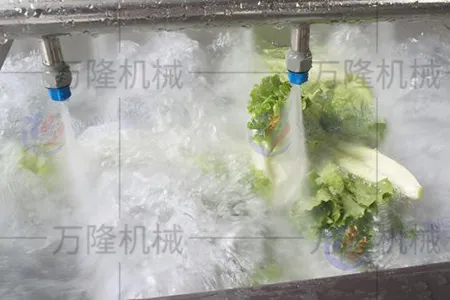

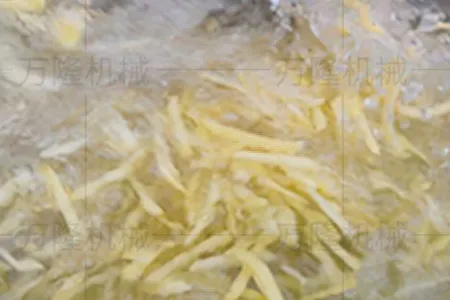

Bubble & Spray Washing
Parameters
Voltage
380V Three-phase
Power
3.7KW
Speed
Adjustable speed
Dimensions
3750*1400*1450mm
Function
1. The materials are thoroughly cleaned by bubble washing, and the machine provides a secondary spray cleaning function. The bottom uses a full stainless steel chain conveyor belt for material transport, ensuring complete and gap-free cleaning.
2. All corners inside the machine are deburred to prevent residue buildup or incomplete material discharge. The discharge port has a guiding device to prevent materials from being carried back.
3. The conveyor belt is made of full stainless steel chain plates, and the machine meets food-grade standards and is easy to clean.

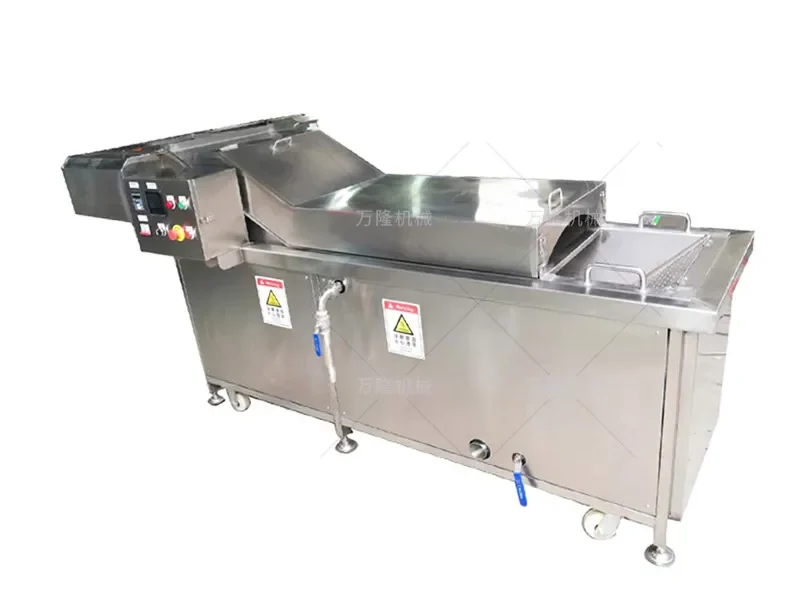

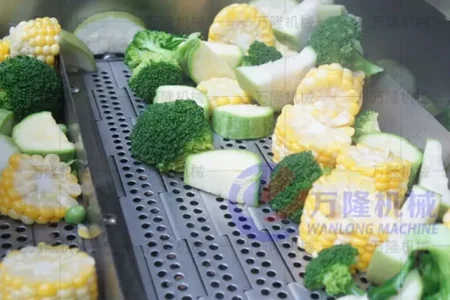

Blanching & Parboiling
Parameters
Voltage
380V Three-phase
Power
5.7KW
Specifications
Customizable
Heating method
Steam/LPG/Electric heating (optional)
Function
1. The machine is equipped with an automatic temperature control solenoid valve device, which automatically adjusts and maintains the temperature within a suitable range. When the temperature reaches the specified degree, the machine automatically maintains a constant temperature. The machine's working time, speed, and temperature are all adjustable.
2. The machine is made entirely of 340 stainless steel, and the materials comply with national food-grade hygiene standards.
3. The machine's outer casing has heat insulation treatment to prevent the machine cover from overheating during prolonged high-temperature operation, thus eliminating potential safety hazards.
4. The bottom of the blanching tank can be opened for direct water rinsing, ensuring there are no dead corners for hygiene.

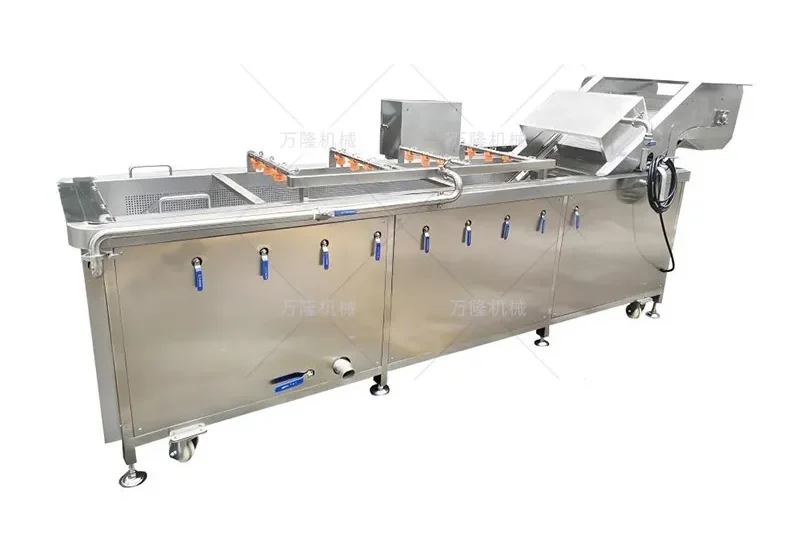

Cooling Section
Parameters
Voltage
380V Three-phase
Power
3.3KW
Dimensions
2700 × 1400 × 1500 mm
Function
1. The machine uses room temperature water to clean and thaw the materials, and can also be connected to a refrigeration unit for ice water cooling.
2. The equipment supports connection to a conveyor line and can also be used as a standalone unit.
3. The machine features variable frequency speed control and a water circulation function.

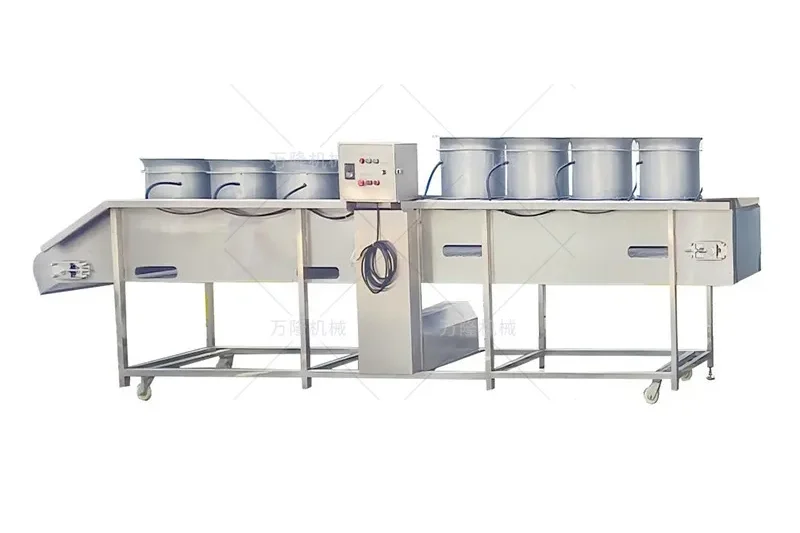

Air Drying Section
Parameters
Mesh belt width
600mm
Power
8KW
Dimensions
5500*1100*1300mm
Configuration
Equipped with high-pressure fan, adjustable speed, and two-layer flipping structure
Function
1. The machine features a three-layer stainless steel mesh conveyor belt for automatic material transport.
2. The machine automatically rotates and has adjustable speed.
3. The equipment blows dry air at room temperature, effectively protecting the color and quality of the materials.
4. It can efficiently drain and air-dry the surface of fruits, vegetables, meat, and other materials.
Modular design of the production line
The entire production line can be configured with different equipment depending on the ingredients and processing steps, and its length, functions, and output can be designed according to space limitations or customer requirements.

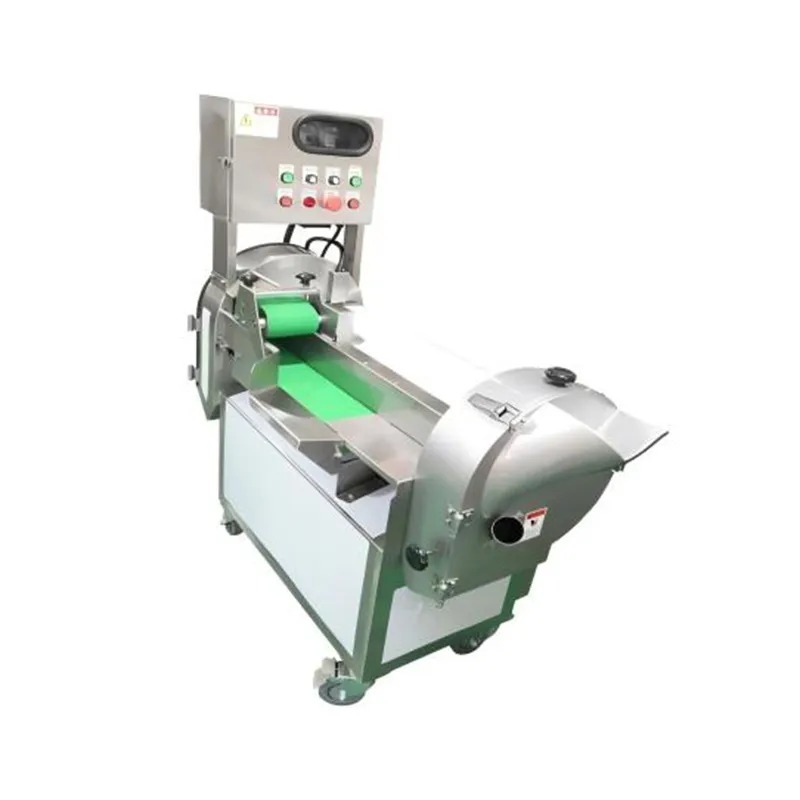

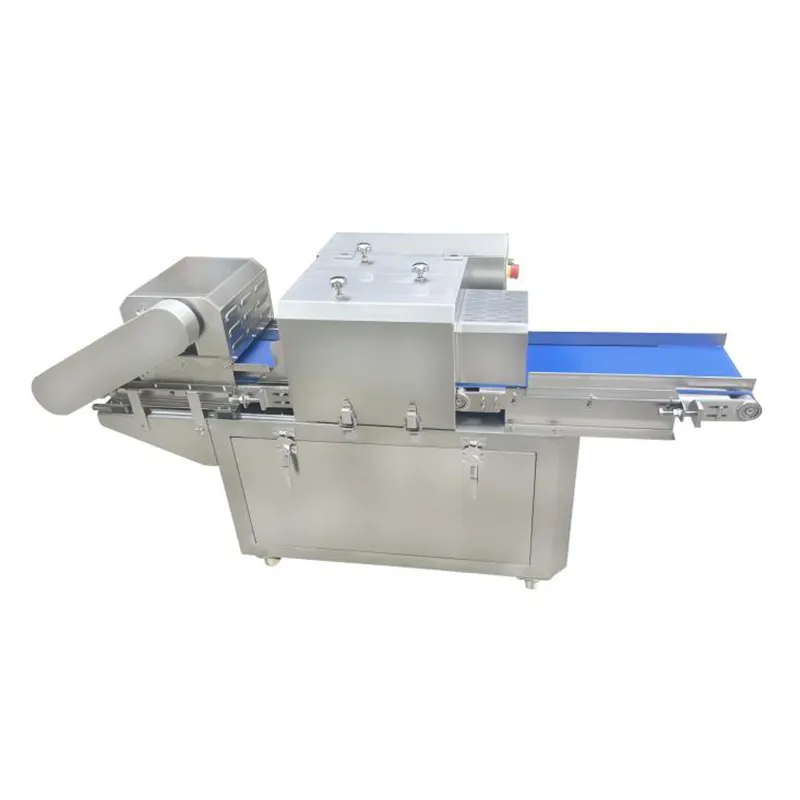

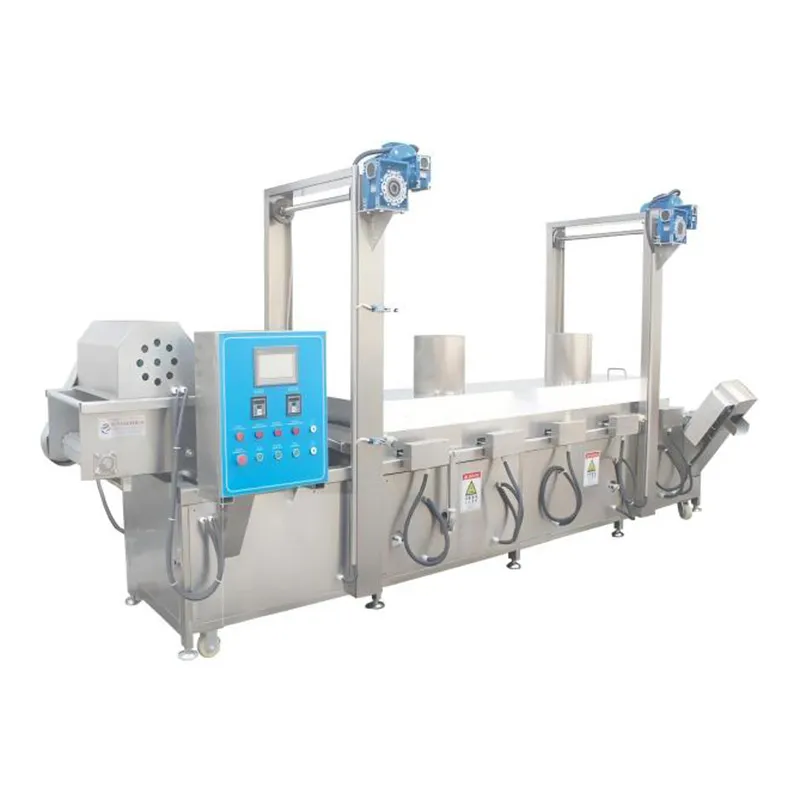

More Production Line Solutions
We will provide equipment layout diagrams based on your factory size, including cusotm production capacity, voltage, and dimensions.
