TRUSTED MANUFACTURER OF POTATO CHIPS MACHINERY
Boost Potato Output by 30% While Reducing Labor Costs by 50% — Upgrade to Our Fully Automated Potato Processing Line.
CONTACT US NOW FOR A FREE PRODUCT CUSTOMIZATION PROPOSAL!
ADVANTAGES OF AUTOMATIC POTATO PROCESSING LINE
- We will provide One-Stop solution from A to Z, all can be customized from output capacity, voltage, french fries size or potato chips thickness.
- Machine layout drawing will be provided based on your factory size.
- Output capacity can be customized from 100kg/h to 2000kg/h.
- All machines are made of food grade 304 stainless steel.
- Schneider electrical components, Siemens motor.
- Efficient mud removal and high-speed cutting guarantee clean, uniform potatoes.
- Intelligent frying systems maintain stable oil temperature for perfect cooking every batch.
- Intelligent frying control ensures uniform quality of chips and French fries.
CASE 1: POTATO WASHING & CUTTING LINE – EXPORTED TO THE NETHERLANDS
Customer Needs:
A Dutch food processor needed an efficient solution to handle large volumes of unwashed potatoes with high consistency in slicing for multiple product types.
Our Solution:
We provided a fully customized potato washing and cutting line, including high-pressure bubble washing, brush peeling, and adjustable cutting blades.
Results:
Processing capacity increased by 40%
Labor reduced by 3 operators per shift
Final products meet strict EU quality standards
Why It Matters:
This project highlights our ability to deliver tailored solutions for complex processing needs while ensuring high food safety standards.
CASE 2: BLANCHING & PRE-COOKING LINE FOR FRENCH FRIES – EXPORTED TO CANADA
Customer Needs:
A Canadian frozen food factory required a pre-cooking system to improve fry texture and extend shelf life before freezing.
Our Solution:
We supplied a custom-designed blanching and pre-cooking line for potato strips, with temperature and time controls adapted to the client’s specific product.
Results:
Improved product consistency and fry crispness
Reduced oil absorption by 18%
Integrated seamlessly with their freezing line
Why It Matters:
This case proves our strength in end-to-end line customization and helping clients optimize quality and production flow.
FEATURES

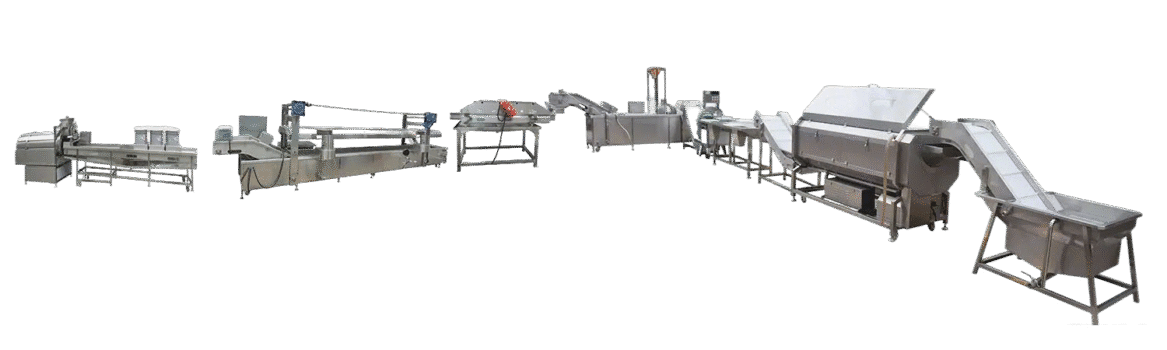

3-in-1 Production Line: Potato Chips, French Fries, Banana Chips

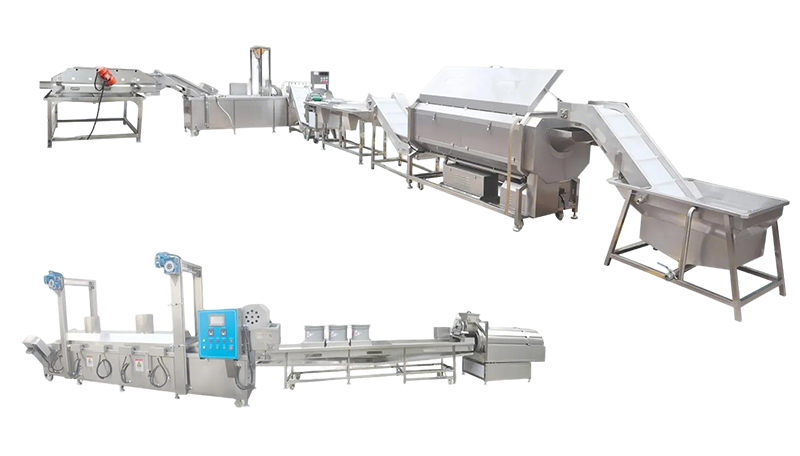

The whole production line is done by cleaning peeling, slicing (fries cutting), washing, blanching, rinse, dehydration, frying, deoil, flavor(IQF frozen), packaging, etc. We can provide free machine layout and technical guidance, to make sure that you fry out high-quality chips of chips. If need a frozen line, plus a quick-freezing machine.

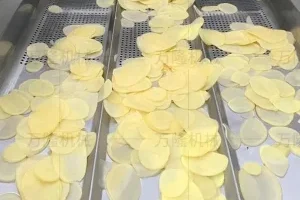

Main Processing Steps of Potato Chips Production Line

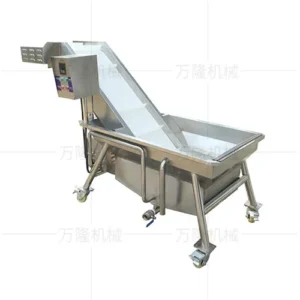

1. Soaking Conveyor
Used for lifting and conveying materials, it can soak the materials and soften the soil on the surface of the materials.
Sus304 stainless steel body + food grade PP conveyor belt

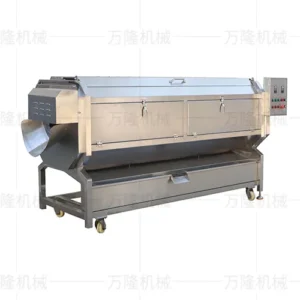

2. Continuous Peeling Machine
The potatoes pass through the elevator and enter the spiral peeling machine to completely remove the potato skin. The special sanding stick for potato peeling is highly efficient.

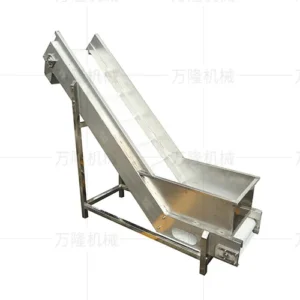

3. Connection Elevator
The functions of lifting and conveying can solve the problem of difficult manual feeding.

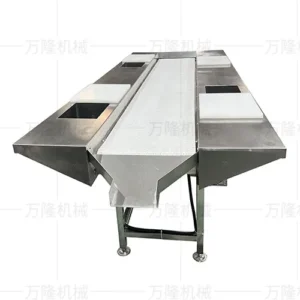

4.4-station Selection Conveyor Belt
The peeled potatoes are transported to this sorting platform, where damaged or rotten potatoes are manually sorted. High-quality PP white conveyor belts are used.

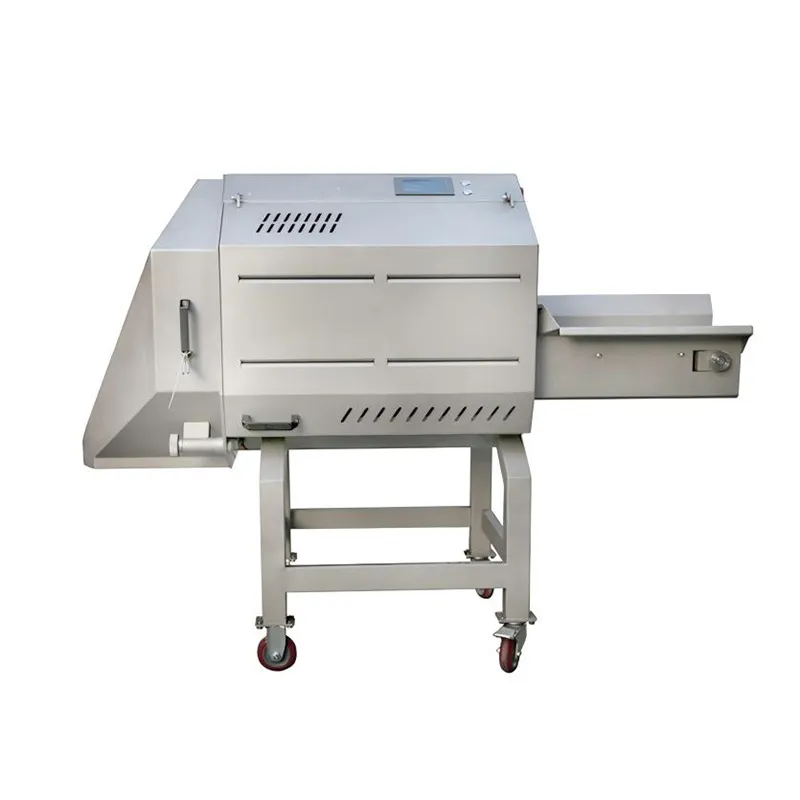

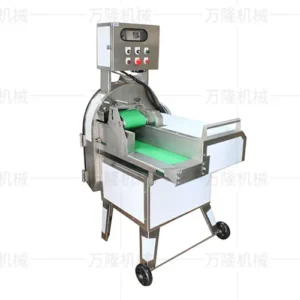

5. Slicer
The conveyor belt speed and the rotating knife speed are adjustable by frequency converter and can be controlled independently. Different cutting thickness can be achieved by configuring the knife disc with different cutting sizes.

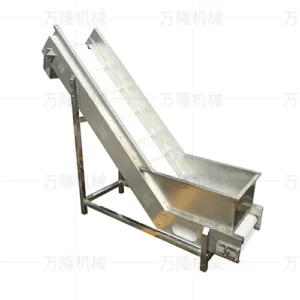

6. Matching Elevator
The functions of lifting and conveying can solve the problem of difficult manual feeding.

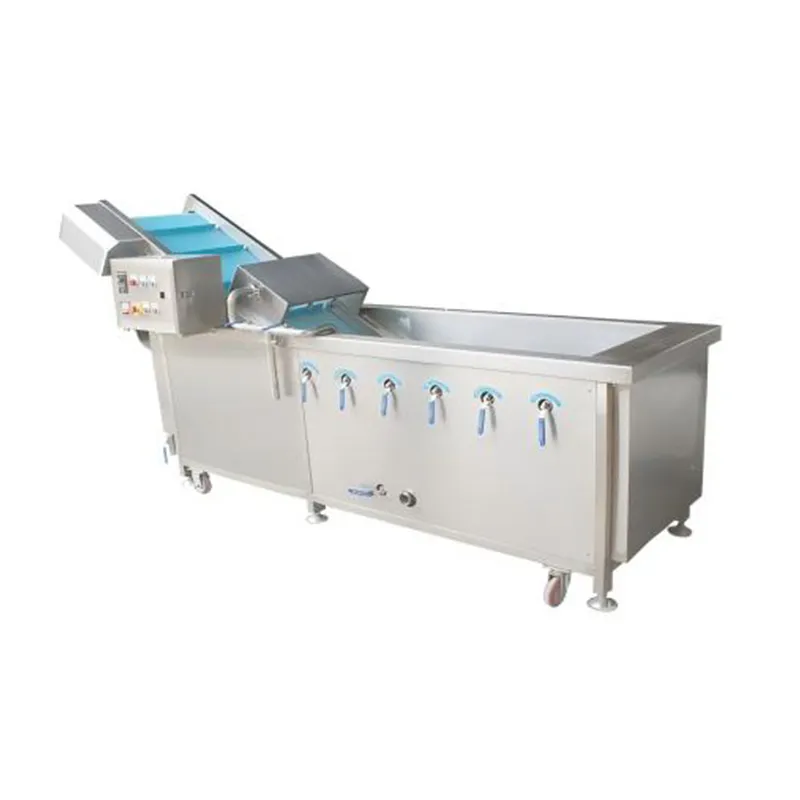

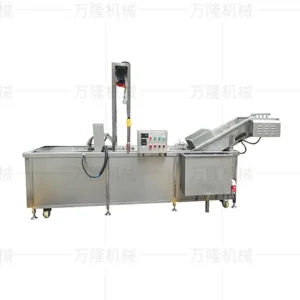

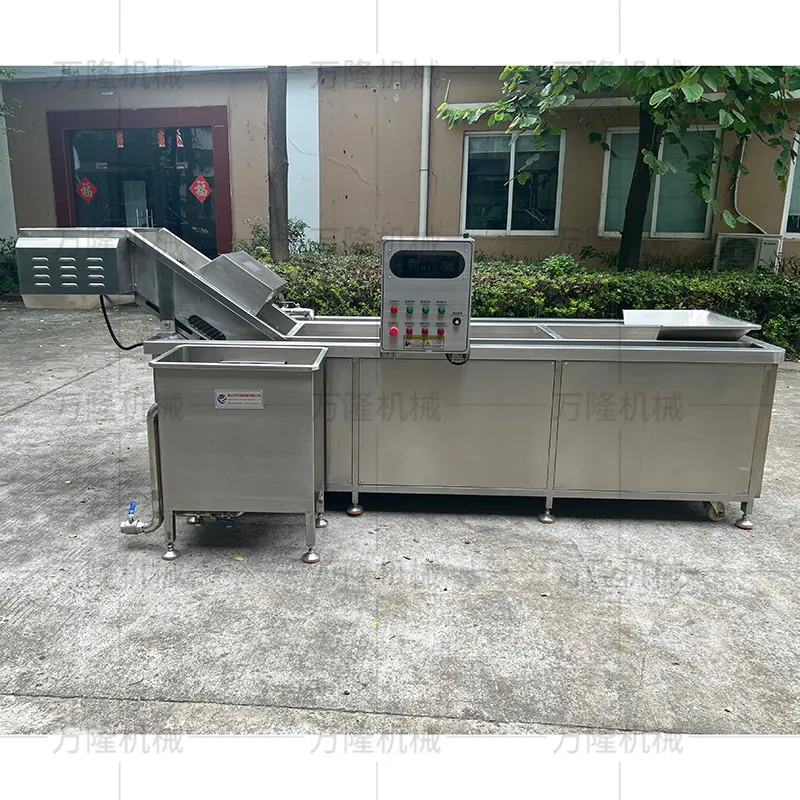

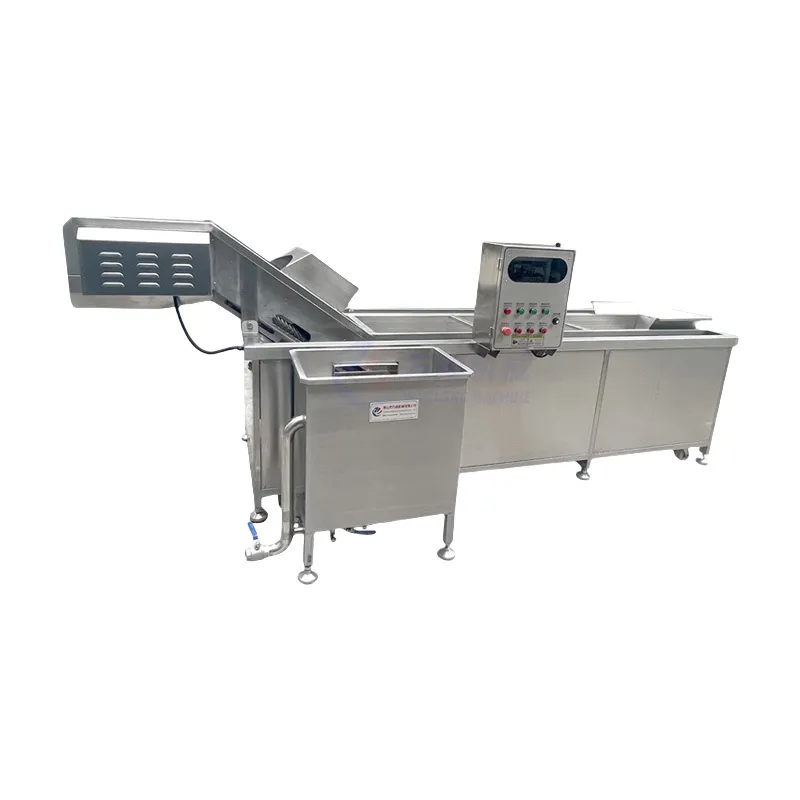

7. Automatic Bubble Cleaning Machine
1. After the potato chips are washed with bubbles, the surface starch is fully washed, and the machine performs secondary spray cleaning. The bottom is driven by a stainless steel chain plate, with no cleaning gap.
2. All corners inside the machine are trimmed to prevent residue or incomplete conveying. There is a diversion device at the conveying outlet to prevent the material from being brought back.
3. The machine has a variable frequency speed regulation function.
4. The conveyor belt is a full stainless steel chain conveyor, which meets food grade standards and is easy to clean.
Configuration:
1. Inverter: TECO; Transmission motor: Wanxin 2. Contactor, relay, circuit breaker: Schneider 3. Circulation spray configuration above the machine

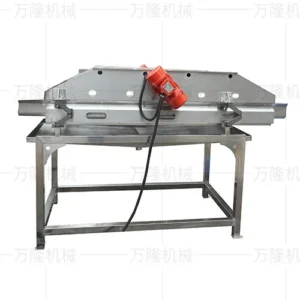

8. Vibration Drainer
This linear vibration draining machine uses the principle of two vibration motors with opposite directions to make the material move linearly on the screen surface in a jumping manner.
Features: The machine uses Italian vibration module.

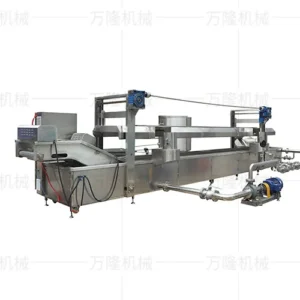

9. Frying Machine
1. The chain plate transmission adopts variable frequency stepless speed regulation, and the frying time is controllable.
2. The equipment is equipped with an automatic lifting system, and the upper cover and mesh belt can be raised and lowered for easy cleaning.
3. The bottom is equipped with a slag discharge system to discharge the residue at any time.
4. The high-efficiency thermal conductivity device is adopted, and the energy utilization rate is high, which is conducive to reducing enterprise costs.
5. The whole machine is made of food-grade 304 stainless steel, and a variety of material guide and conveying structures are combined to prevent the frying materials from piling up and frying unevenly or becoming mushy.
6. The upper and lower double-layer mesh belts are used for transmission, and the product is sandwiched between the double-layer mesh belts to prevent the product from floating.

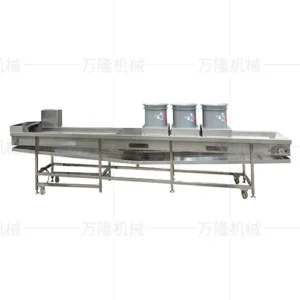

10. Oil Filter Air Drying Line
The air drying line is made of high-quality 304 stainless steel with adjustable conveying speed. Three high-pressure circular blowers are used to air dry the potatoes, which are transported by mesh belts to accelerate the cooling of the French fries and dry the surface moisture for subsequent processing.

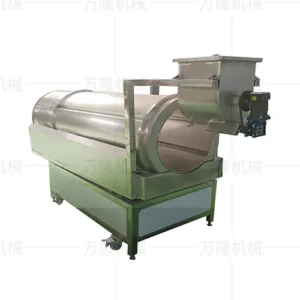

11. Seasoning Machine
The seasoning machine consists of a base support, a rotating drum, a powder feeding device, a transmission system and a speed control system. It can automatically control the speed and capacity of the material and is suitable for continuous seasoning operations in the assembly line. The material falls into the drum pushed upward by the mixing blades and falls from above to mix with the seasoning powder.
Automatic potato processing equipment made by WANLONG Machinery has been sold to more than 50 countries like Egypt, Jordan, Moldova, France, Libya, Saudi Arabia, Kuwait, United Kingdom, Mexico etc. Want to get more information about French fries production line, just feel free to contact us.
FAQs
The output capacity varies widely depending on the specifc model, the automatic potato chip production lines typically process anywhere from 100kg/h to 500 kg/heven customized tons of potato chips per hour
Costs can vary widely based on capacity and technolgy but can range from severalten thousand to severalhundred thousand dolars. factors that inuence the cost include the scale of production, type of equipment, and level of automation.
Yes.these potato chips production lines can be customized or adiusted to produce varous types ofsnacks, such as idged potato chips, shoestring potatoes, cassava chips, or even other snacks like banana chips or sweet potato chips.
Space requirements depend onthe specifc equipment and capacitly, but a large production line usualyrequires a spacious facity with adequate room for machinery raw material storage, and finished product storage. Normally, it needs 200㎡ – 600㎡?
The number of workers reguired varies based on the level of automation and the production capacity. The automatic potato chips ines may require fewer workers than the semi-automated lines. Normally it needs 8 workers. The Key roles include machine operators and quality controlinspectors.
- Temperature sensors for monitoring frying and blanching
- temperaturesAutomatic control systems for accurate packaging
- Programmable Logic Controllers (PLCs) for system control
Select high-qualty potatoes, maintain proper oltemperatures during fnying, ensure even seasoning distribution,and conductreqular inspections during production.Making regular maintenance, and optimizing the processing parameters willimprove the eficiency of the potato chips production line.
Contact us
1. Please share your custom requirements (capacity, output, space, etc.) for an accurate quote.
2. Let us know your Email/WhatsApp/WeChat so we can respond quickly.
3. We’ll contact you within 24 hours with a tailored solution!
