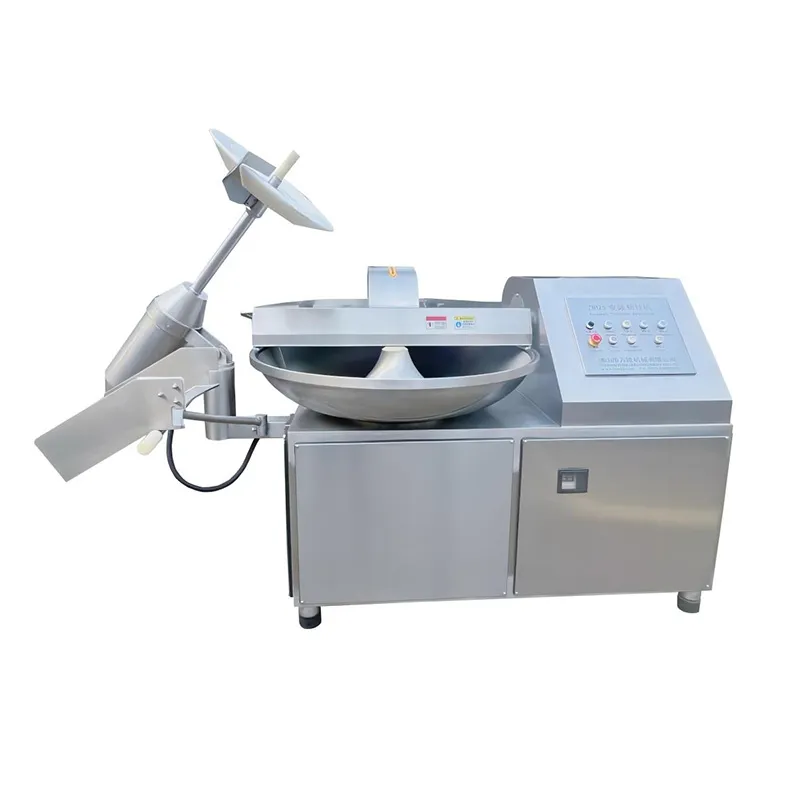

Bowl Cutter Machine
The ideal combination of the chopper’s blade speed, pot speed, and the gap between the chopper blade and the rotating pot results in finely chopped products with low temperature rise and short chopping time. In particular, due to the emulsification process, the fineness and elasticity of sausage products are greatly enhanced, significantly improving the emulsification effect, elasticity, and delicacy of meat products.
Product details
1. The cleaver is manufactured using a unique wire cutting process and a special machining center, resulting in high hardness, imported materials, good toughness, and wear resistance.
2. The cleaver pot is made of cast stainless steel, formed in one piece, with a special anti-overflow rim design to effectively prevent spillage.
3. Waterproof electrical components are used. The electrical box can be installed separately, offering excellent sealing and protection against water and moisture.
4. The main spindle bearings are imported and large-sized (50mm in heavy-duty bearings), providing strong shock resistance and a long service life. Four types of bearing seals effectively prevent bearing damage.
5. The machine is equipped with a one-button automatic rapid discharge device, and the cleaver speed is adjustable from 0-3000 rpm using frequency conversion.
Parameter
| Model | ZB-125 |
| Power | 24.57KW |
| Power Supply | 380V, 50Hz |
| Production Capacity | 80kg/cycle |
| Number of Chopping Blades | 6 plates |
| Chopping Blade Speed | Variable frequency speed control 300-3000r/min |
| Chopping Pot Speed | Dual speed 14/20r/min |
| Dimensions | 2350*1645*1710mm |
| Main Unit Weight | 1400kg |
| Frame Material | SUS 304 stainless steel |
| Chopping Blade Material | 420 stainless steel |
| Chopping Pot Material | SUS 304 stainless steel |
Application
1. The Bowl Cutter Machine utilizes the high-speed rotating blades to chop meat and other ingredients into minced or paste-like pieces. It can also mix other ingredients, water, and minced or meat chunks together evenly.
2. The machine ensures the fineness of the chopped meat materials, improving the emulsification, elasticity, smoothness, and yield of the meat products.
3. To meet the needs of different users, our company offers a complete series of meat chopper models that are easy to operate and safe and reliable.
