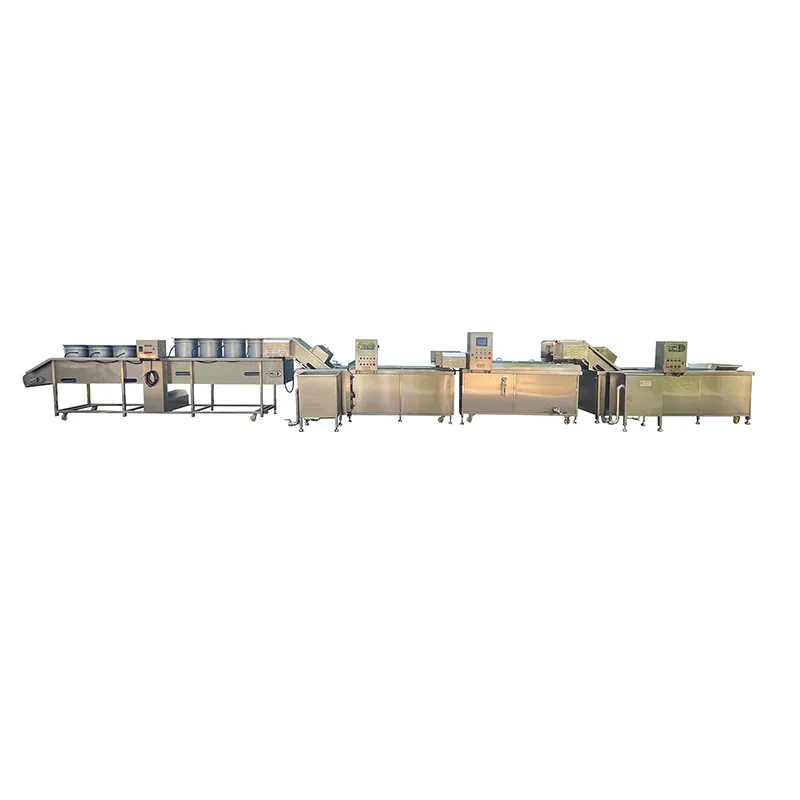

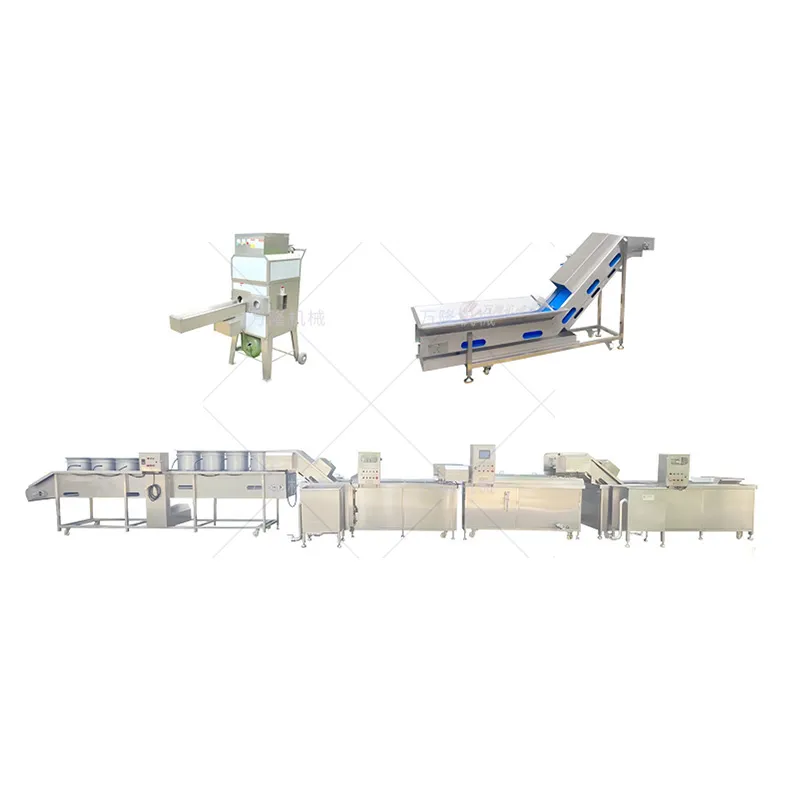

Corn Cleaning and Blanching Line
The corn processing line can be connected to different equipment according to the processing steps of different food ingredients, and the length, function and output of the production line can be designed as required.
Product details
1. Elevator
Transfers materials to the next machine to solve the problem of manual feeding.
2. Corn thresher
Separates corn kernels and corn cobs and discharges them separately, and the threshing depth is adjustable.
3. Cleaner
Cleaning and impurity removal on the surface of corn kernels.
4. Blanching machine
Achieve the effect of blanching corn kernels, and the blanching speed and temperature are adjustable.
5. Cooler
Lowers the temperature of corn kernels after they come out of the blanching machine, and the color and taste of corn kernels are consistent.
6. Air dryer
Air-dry the water droplets on the surface of corn kernels so that they can enter the next processing step.
Processing Flow
The production line is well designed, with a high degree of automation, multiple options and multiple combinations.
Corn threshing - lifting - cleaning - blanching and pre-cooking - cooling - air drying and draining
Overall line output: 600kg per hour
Parameter
| Machine Name: | Corn threshing machinery |
| Model: | YM-500 |
| Voltage: | 220V, Single Phase |
| Horsepower: | 1HP + 1/2HP + 1/4HP |
| Production Capacity: | 500-600kg/hr Finished Corn Kernels |
| Weight: | 100kg |
| Dimensions: | 630*620*1250mm |
| Application: | Suitable for threshing all kinds of fresh, sweet, glutinous corn and frozen corn after thawing. |
| Machine Name | Conveyor elevator |
| Voltage: | 380V |
| Power: | 0.37KW |
| Specifications: | 2300*800*2000mm |
| Application: | Move the material to the next process. |
| Features: | The conveyor belt is made of food-grade chain plate imported from the United States, and the machine frame is made of SUS304 stainless steel. |
| Machine Name: | High-pressure spray cleaning machinery |
| Model: | QB-35 |
| Voltage: | 380V |
| Power: | 4.5KW |
| Output: | 2000kg/h |
| Net Weight: | 337kg |
| Dimensions: | 3700*900*1250mm |
| Application: | Suitable for cleaning various fresh vegetables, salted vegetables, mushrooms, meats, and seafood; applicable to central kitchens and the clean vegetable processing industry. |
| Machine Name: | Automatic blanching machinery |
| Model: | PT-35 |
| Size: | 3730*1430*1550mm |
| Output: | 500-800kg/hour |
| Power: | 5.5kw |
| Voltage: | 380V |
| Heating Method: | Electricity, natural gas, diesel, or pellets (any of these options is acceptable) |
| Application: | Cleaning, soaking, blanching, cooling, sterilizing, and disinfecting of fresh fruits and vegetables, meats, salted vegetables, mushrooms, seafood, and other materials. |
| Machine Name: | Wire mesh conveyor drying machine |
| Power Supply: | 380V, three-phase |
| Power Rating | Three-layer rotating drying, 8 circular fans |
| Dimensions: | Customizable upon request |
| Application: | Food drying machinery is used to remove water from the surface of cleaned materials. Different production lines or equipment with different specifications can be specially customized according to customer needs. |
Application
The use of this equipment can greatly improve the effect and quality of corn processing and reduce many costs in the production process.
