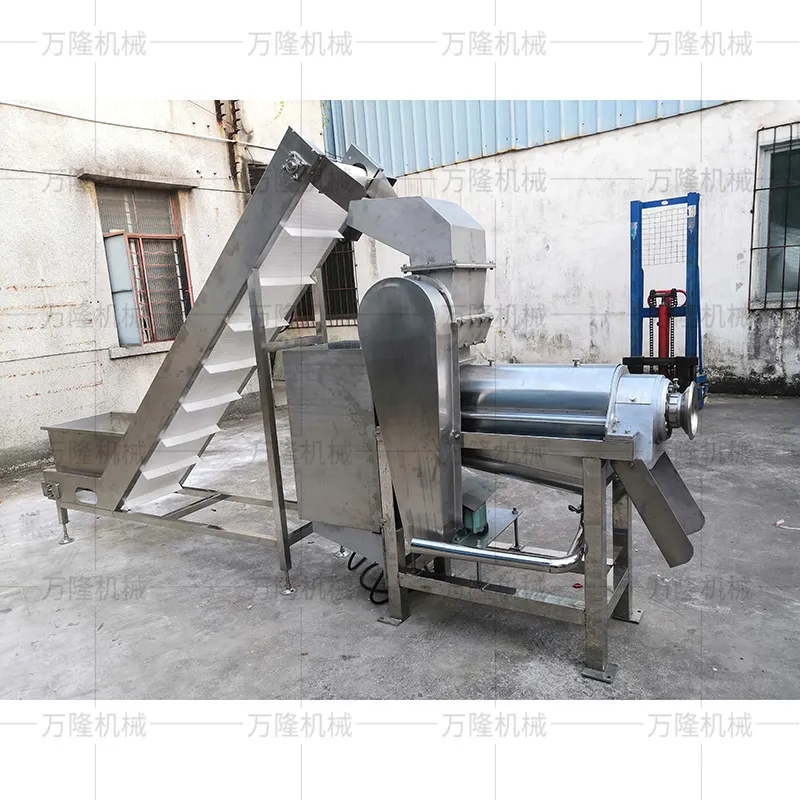

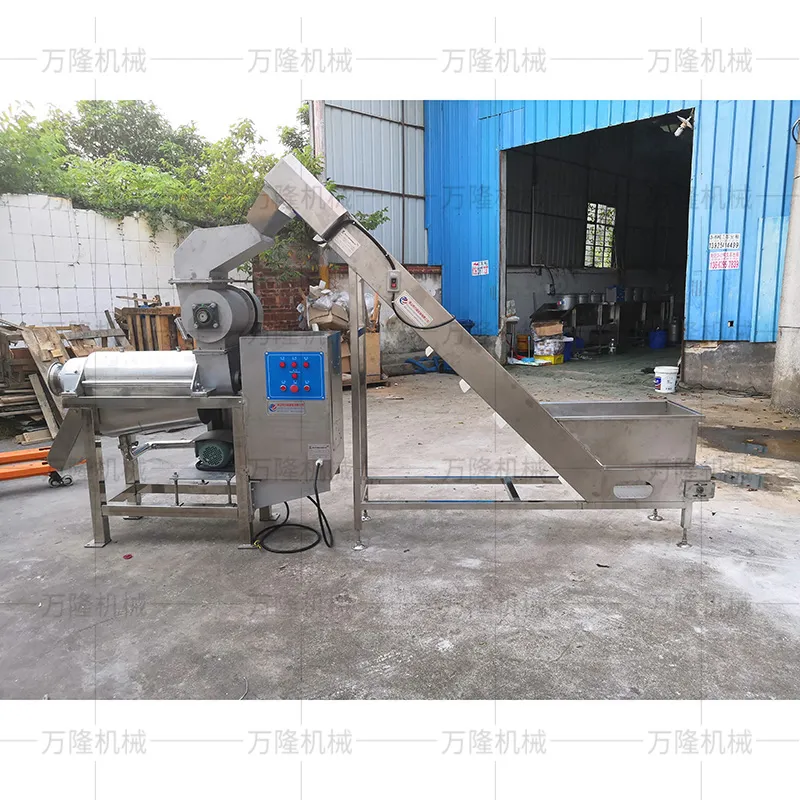

Industrial Screw Juice Extractor
1. Automatically separates water and pulp, resulting in a high juice yield.
2. Powerful motor provides strong pressing force and rapid juice extraction.
3. Optional crushing function allows for direct juicing of large fruits without cutting, ensuring smooth juice-pulp separation and preventing clogging.
Product details
1. The main component of this equipment is a screw whose bottom diameter gradually increases while the pitch gradually decreases along the direction of the slag outlet.
2. When the material is propelled by the screw, the shrinking volume of the screw cavity creates a pressing effect on the material. The rotation direction of the screw shaft, viewed from the feed hopper towards the slag trough, is clockwise.
3. Raw materials are added to the feed hopper and pressed under the propulsion of the screw. The pressed juice flows through a filter screen into the juice collector at the bottom.
4. Waste material is discharged through the annular gap formed between the screw and the pressure-regulating conical section. The size of the gap can be adjusted by moving the pressure regulating head axially.
Parameter
| Model | Voltage | Power | Net Weight | Output | Machine Dimensions |
| ZZ-500 | 380V | 2.2kw | 98kg | 500 kg/hour | 1100×450×950mm |

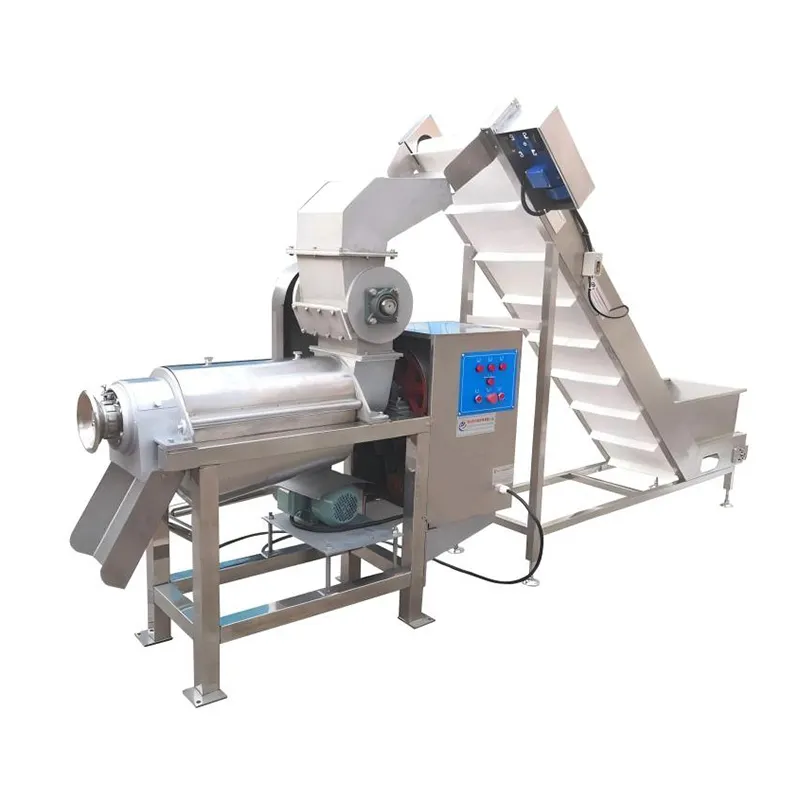

| ZZ-1500 | 380V | 6kw | 240kg | 1500 kg/hour | 1400×550×1380mm (including crushing function) |
| ZZ-2500 | 380V | 11kw | 480kg | 2500 kg/hour | 1750×800×1900mm |
Application
This High Yield Screw Juicer is used to juice pineapples, apples, pears, mulberries, grapes, oranges, tomatoes, ginger, garlic, celery, and other fruits and vegetables.
