Passion Fruit Juice Extractor
Suitable for juicing fruits such as kumquats, lemons, oranges, tangerines, grapefruits, and limes. No need to peel or grade the fruits; simply extract the juice, seeds, and pulp directly.
Product details

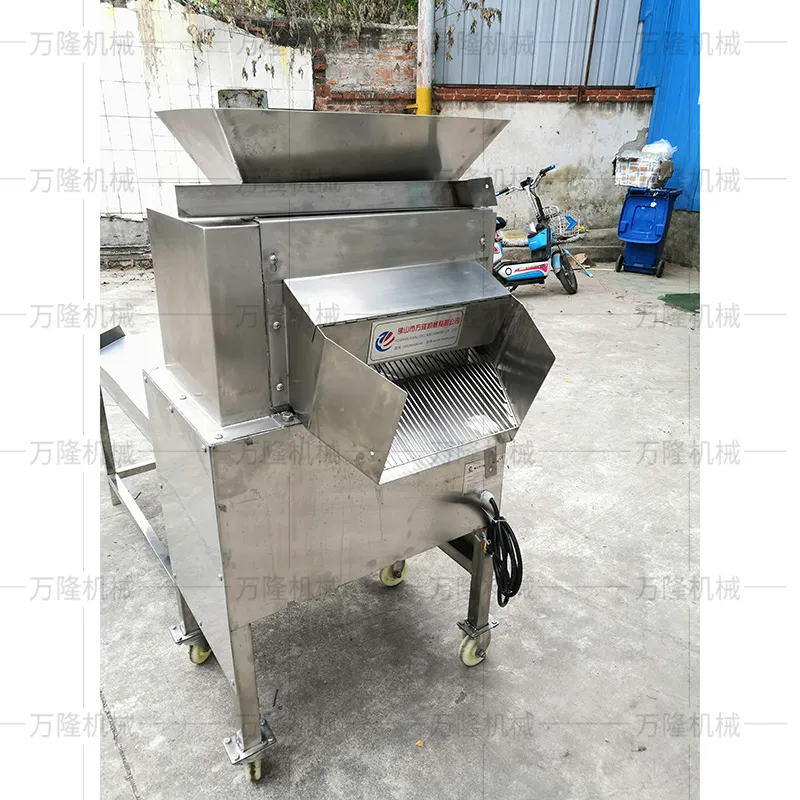

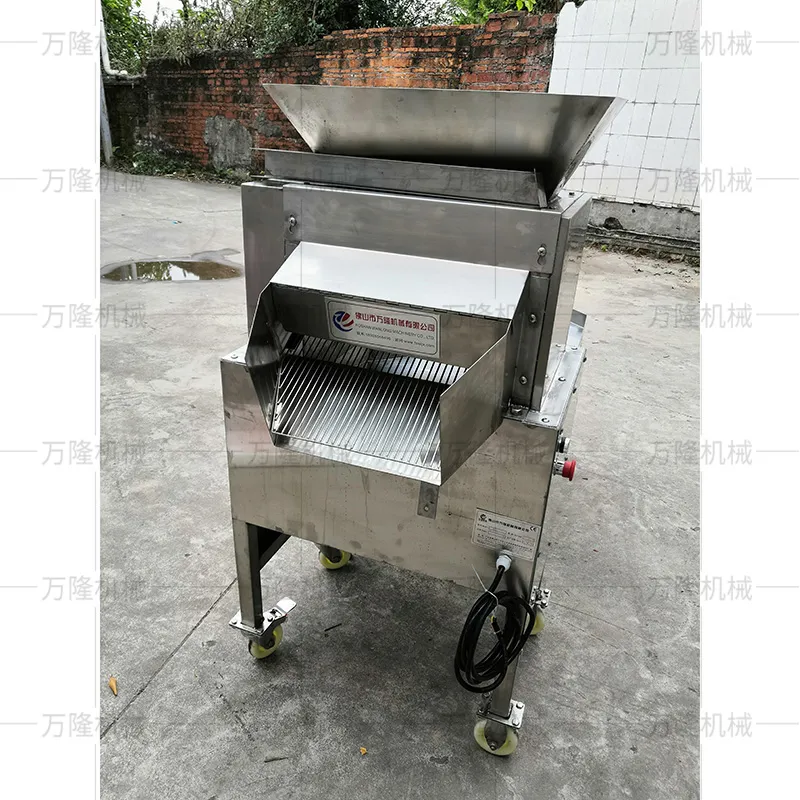

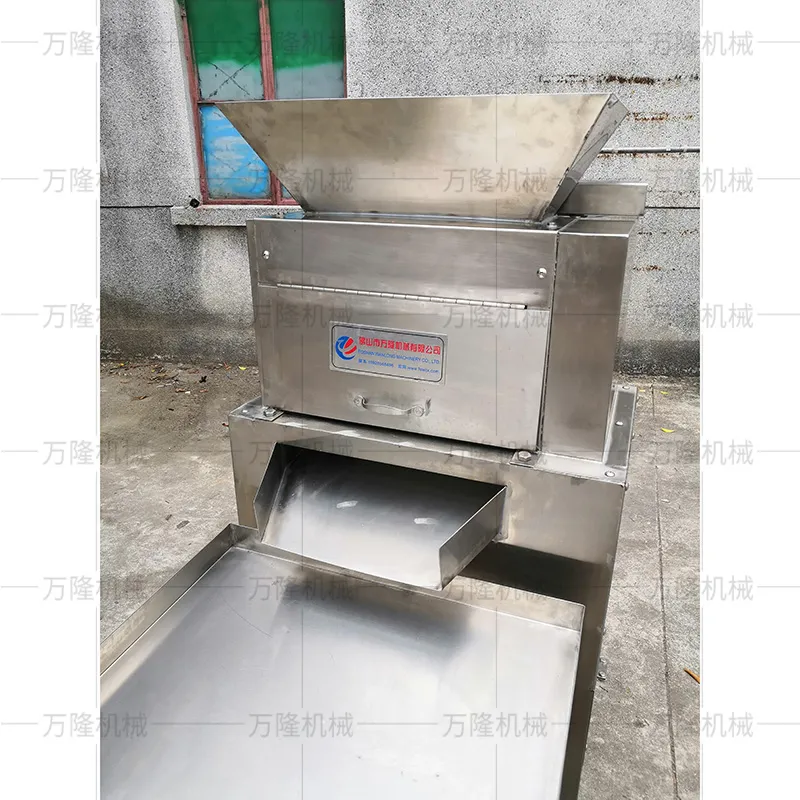

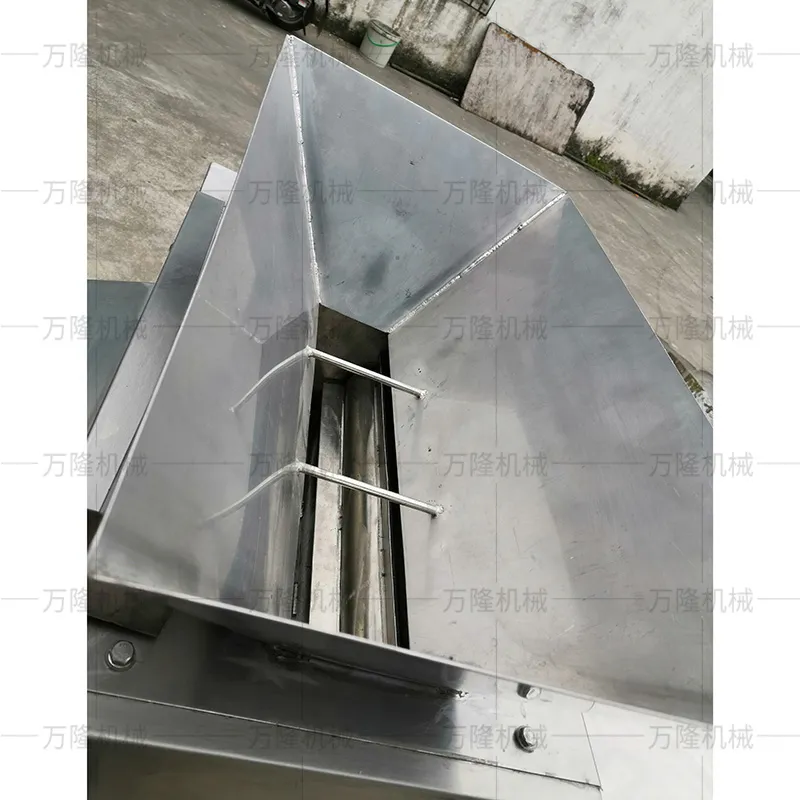

1. The passion fruit juicer mainly consists of three pressure rollers, two blade rollers, one feeding roller, a feed hopper, a pulp hopper, a peel hopper, a frame, and a transmission system.
2. Before operating the machine, connect the power supply, then pour the material into the feed hopper.
3. The material first passes between the two blade rollers and is pressed by the feeding roller into the space between the two blade rollers, where it is cut open. The passion fruit pulp, including seeds, is discharged from the pulp hopper.
4. The peel is further pressed by the three pressure rollers and then discharged from the peel hopper, thus achieving the purpose of separating the juice from the peel.
Parameter
| Model | ZG-800 |
| Voltage | 220V |
| Power | 1.5KW |
| Maximum Processing Capacity | 500kg/hour |
| Equipment Weight | 125kg |
| Dimensions | 830*670*1350mm |
| Filter Mesh Diameter | 0.6-10mA |
Application
Automatic Fruit Pulp and Seed Separator are suitable for juicing fruits such as kumquats, lemons, oranges, tangerines, grapefruits, and limes. The fruits do not need to be peeled or graded; they can be juiced directly to extract the seeds and pulp.
