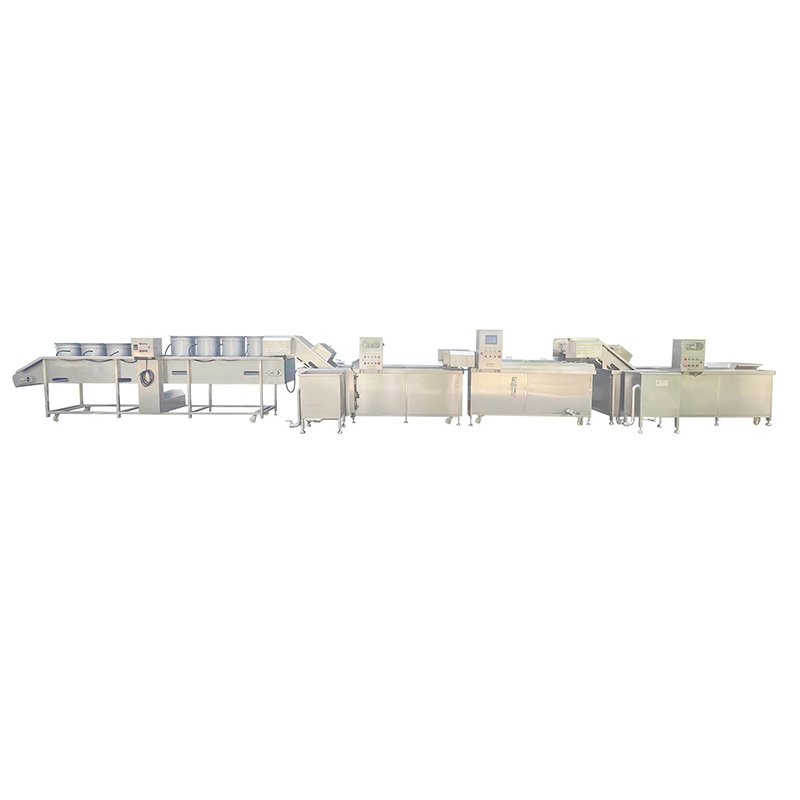

Vegetable and Meat Blanching Production Line
（1）Product：
The use of this equipment can greatly improve the effect and quality of vegetable processing, reduce multiple costs in the production process, and make your products more competitive in the market.
（2）Services:
Can be customized on demand.
Customized whole factory assembly line。
Intelligent automated operation。
Product details
1. Stainless steel material
The whole machine is made of SUS304 stainless steel. The conveyor belt can be made of stainless steel chain net, stainless steel chain plate, etc. according to requirements. The machine runs smoothly, has low noise, small elasticity, is not easy to deform, and is easy to maintain.
2. Unique design of the discharge port
Fast feeding, even heating of food, high degree of automation, and easy control of product quality.
Processing Flow

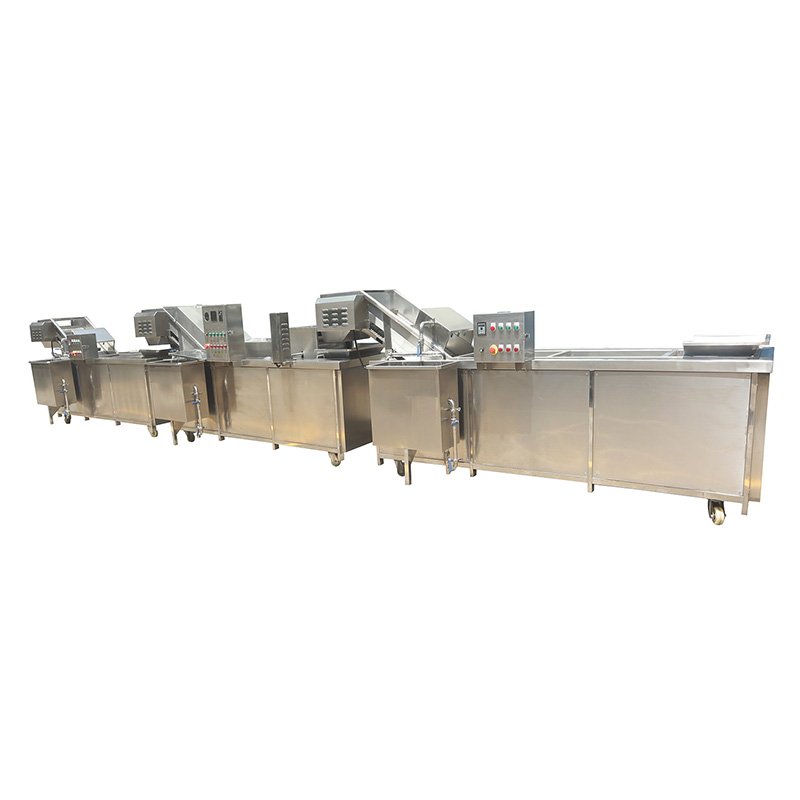

The Vegetable & Meat Processing Blanching Line is well designed, with a high degree of automation, multiple options and multiple combinations.The entire meat production line can be connected to different equipment according to the processing steps of different ingredients, and the length, function and output of the production line can be designed as required.
Parameter
| Machine Name: | Cleaning equipment |
| Voltage: | 380V Three-phase |
| Power: | 3.7KW |
| Speed: | Adjustable speed |
| Machine Dimensions: | 3750*1400*14500mm |
| Application: | 1. The material undergoes bubble washing, ensuring a thorough surface clean. A secondary spray cleaning function is provided. The bottom is equipped with a full stainless steel chain belt drive, eliminating cleaning gaps. 2. All internal edges and corners are trimmed to prevent residue or incomplete material conveying. A flow guide at the discharge port prevents material from being carried back. 3. The conveyor belt is made of full stainless steel chain plates, meeting food-grade standards and facilitating easy cleaning. |
| Machine Name: | Blanching and scalding machinery |
| Voltage: | 380V |
| Power: | 5.7KW |
| Specifications: | Customizable |
| Heating Method: | Steam/LPG/Electric Heating Optional |
| Application: | 1. The machine is equipped with an automatic temperature-controlled solenoid valve, which automatically adjusts and maintains the temperature within a suitable range. When the specified temperature is reached, the machine automatically maintains a constant temperature. The machine's operating time, speed, and temperature are adjustable. 2. The entire machine is constructed of 340 stainless steel, and the sheet metal meets national food-grade hygiene standards. 3. The machine's outer casing is insulated to prevent the lid from overheating during prolonged operation and causing safety hazards. 4. The bottom of the scalding tank can be opened for direct rinsing with water, eliminating any unsanitary corners. |
| Machine Name: | Cooling machine |
| Voltage: | 380V |
| Power: | 3.3kw |
| Dimensions: | Length 2700×Width 1400×Height 1500mm |
| Application: | 1. Can be cleaned and thawed with room temperature water. It can also be connected to a refrigeration unit for chilled water cooling. 2. Supports connection to a conveyor line, or can be used independently. 3. Features variable frequency speed control and water circulation function. |
| Machine Name: | Air drying machine |
| Belt Width: | 600mm |
| Total Power: | 8KW |
| Dimensions: | 5500*1100*1300mm |
| Configuration: | Equipped with a high-pressure blower, adjustable speed, two-layer tilting structure |
| Application: | 1. The entire machine uses a three-layer stainless steel mesh chain drive for conveying and discharging materials. 2. Automatic tilting with adjustable speed. 3. The drying air is at room temperature, effectively protecting the color and quality of the materials. 4. Surface drying of vegetables, fruits, meats, and other materials. |
Application
The use of this equipment can greatly improve the effect and quality of meat processing and reduce many costs in the production process.
