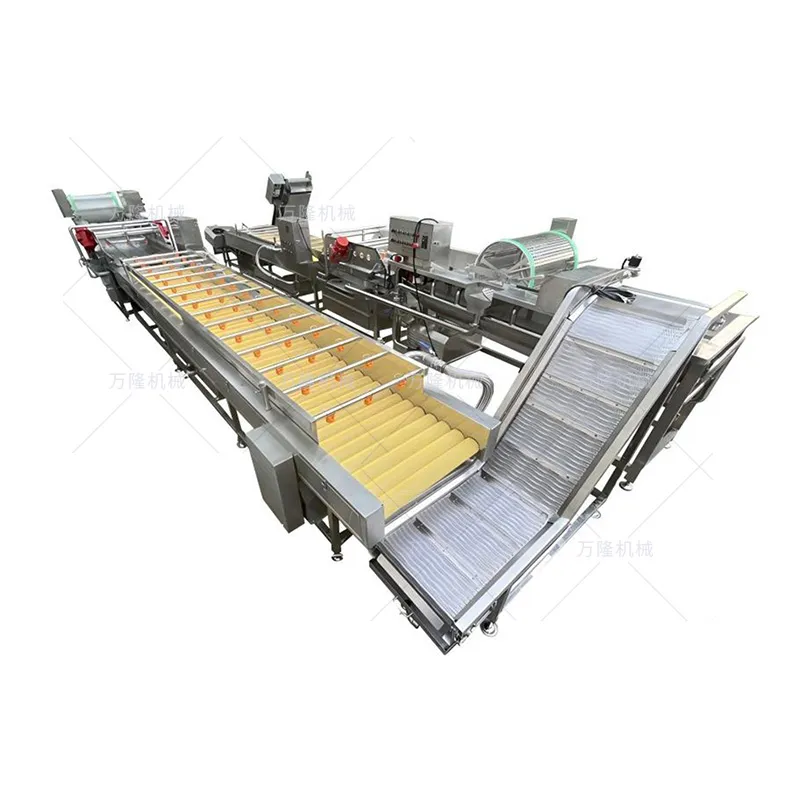

Vegetable & Seafood Cleaning Production Line
（1）Product：
The use of this equipment can greatly improve the effect and quality of vegetable processing, reduce multiple costs in the production process, and make your products more competitive in the market.
（2）Services:
Can be customized on demand.
Customized whole factory assembly line。
Intelligent automated operation。
Product details
1. The spiral vortex cleaning principle completely immerses the food in water for 360-degree rotation cleaning without dead angles. The bubbles are used under the action of the water vortex to ensure that the dirt and food are effectively separated. The vortex drives the food to move forward automatically, and the mud and sand are directly discharged from the filter plate at the bottom of the cylinder.
2. The food material is transported to the moving brush and moves forward continuously, so that hair impurities and the like adhere to the brush. At the same time, the upper high-pressure spray pipe sprays water to flush, achieving the purpose of efficient cleaning.
3. The stainless steel chain plate drives the lifting conveyor to convey the material to the next process, reducing labor.
Processing Flow
The automatic food cleaning line is well designed, with a high degree of automation, multiple options and multiple combinations.Each production line can be designed and customized according to the customer's production process requirements, output, and site restrictions.
Parameter
| Machine Name: | Eddy current cleaning machine |
| Voltage: | 380V，50Hz |
| Power: | 5.7KW |
| Dimensions: | 4300*1440*1600mm |
| Configuration: | Vortex cleaning + vibration dewatering |
| Remarks: | Sizes can be customized upon request. |
| Application: | Vortex washing machines are suitable for central kitchen operators to remove mud and wash leafy vegetables and cut root vegetables, such as cabbage, sauerkraut, etc. |
| Machine Name: | Slag removal and filtration machine |
| Model Number： | SC-1500 |
| Power： | 200W |
| Voltage： | 220V |
| Weight： | 48kg |
| Dimensions： | 540*420*410mm |
| Processing Speed: | 20-30 strips/minute |
| Application: | High-pressure spray continuous fruit washing machine is suitable for washing the surface of various fruits and root vegetables. |
| Machine Name | Conveyor elevator |
| Voltage: | 380V |
| Power: | 0.37KW |
| Specifications: | 2300*800*2000mm |
| Application: | Move the material to the next process. |
| Features: | The conveyor belt is made of food-grade chain plate imported from the United States, and the machine frame is made of SUS304 stainless steel. |
Application
The use of this equipment can greatly improve the effect and quality of Fish skin processing, cleaning and impurity removal and reduce many costs in the production process.
